7075 Aluminum Alloy is a cold-treated wrought alloy with high strength, far superior to soft steel.7075 is one of the strongest alloys commercially available.
7075 materials are generally added to a small amount of copper, chromium and other alloys, the series of 7075-T651 aluminum alloy in particular, known as the aluminum alloy in the best products, high strength, far better than any soft steel. This alloy also has good mechanical properties and anodic reaction. Representative uses include aerospace, mold processing, machinery and equipment, jigs and fixtures, especially for the manufacture of aircraft structures and other high-stress structures requiring high strength and corrosion resistance.

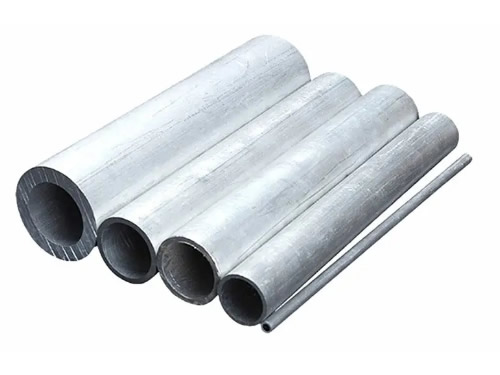

| 7075 Aluminum Pipe/Tube | ||
| Standard | JIS, AiSi, ASTM, GB, DIN, EN etc | |
| Grade | 1000 Series,2000,3000 Series,4000Series,5000Series,6000Series,7000Series,8000Series,9000Series | |
| Industrial Pure Aluminum | (1050,1060 ,1070, 1100) | |
| Aluminum-copper alloys | (2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17) | |
| Aluminum-manganese alloys | (3A21, 3003, 3103, 3004, 3005, 3105) | |
| Al-Si alloys | (4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A) | |
| Al-Mg alloys | (5052, 5083, 5754, 5005, 5086,5182) | |
| Aluminum Magnesium Silicon Alloys | (6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02) | |
| Aluminum, Zinc, Magnesium and Copper Alloys | (7075, 7A04, 7A09, 7A52, 7A05) | |
| Surface | Coated, Embossed,Brushed, polished, Anodized,etc | |
| OEM service | Perforated, Cutting special size, Doing flatness, Surface treatment,etc | |
| MOQ | 1 ton | |
| Delivery Time | Within 3 days for our stock size,15-20days for our production | |
| Application | Construction filed, Ships building industry, Decoration, Industry,Manufacture,Machinery and hardware fields, etc | |
| Sample | Free and available | |

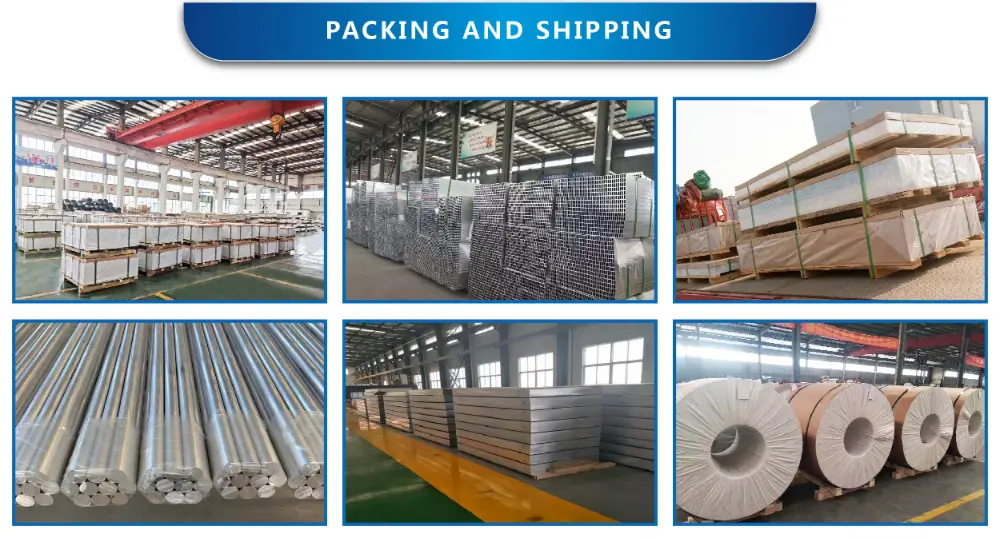

| Package | Export standard package: bundled wooden box, suit for all kinds of transport,or be required | |
Available Size Range
| Dimension | Range |
| Outside | 8.0~350mm for Round |
| Diameter | 15x15mm~250x250mm for Square 10x20mm~200x250mm for Rectangle |
| Wall Thickness | 0.5~40mm |
| Length | 1,000~6,000mm |
- Production Process: Extruded, Cold Drawn
- Form & Image: Round, Square, Rectangle
- Surface Finish: Mill Finish, unless otherwise specified
- Surface Protection: Paper interleaved
Chemical Composition (For Reference)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.05 | 0.03 | 0.03 | - | 99.50 |
| 1050A | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.07 | 0.05 | 0.03 | - | 99.50 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.03 | - | 99.60 |
| 1100 | 0.95 Si + Fe | 0.05~0.20 | 0.05 | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | |
| 2014 | 0.5~1.2 | 0.7 | 3.9~5.0 | 0.4~1.2 | 0.2~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 2017 | 0.2~0.8 | 0.7 | 3.5~4.5 | 0.4~1.0 | 0.4~0.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | 91.5 - 95.5 |
| 2024 | 0.50 | 0.50 | 3.8~4.9 | 0.3~0.9 | 1.2~1.8 | 0.10 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 3003 | 0.60 | 0.70 | 0.05~0.20 | 1.0~1.5 | - | - | 0.10 | - | 0.05 | 0.15 | remainder |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0~1.5 | 0.8~1.3 | - | 0.25 | - | 0.05 | 0.15 | remainder |
| 3005 | 0.60 | 0.70 | 0.30 | 1.0~1.5 | 0.2~0.6 | 0.10 | 0.25 | 0.10 | 0.05 | 0.15 | remainder |
| 3105 | 0.60 | 0.70 | 0.30 | 0.3~0.8 | 0.2~0.8 | 0.20 | 0.40 | 0.10 | 0.05 | 0.15 | remainder |
| 5005 | 0.30 | 0.70 | 0.20 | 0.20 | 0.5~1.1 | 0.1 | 0.25 | - | 0.05 | 0.15 | remainder |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2~2.8 | 0.15~0.35 | 0.10 | - | 0.05 | 0.15 | remainder |
| 5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6~3.6 | 0.30 | 0.20 | 0.15 | 0.05 | 0.15 | remainder |
| 5083 | 0.40 | 0.40 | 0.10 | 0.4~1.0 | 4.0~4.9 | 0.05~0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 6061 | 0.40~0.8 | 0.70 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 6082 | 0.70~1.3 | 0.50 | 0.10 | 0.4~1.0 | 0.6~1.2 | 0.25 | 0.20 | 0.10 | 0.05 | 0.15 | remainder |
| 7075 | 0.40 | 0.50 | 1.2~2.0 | 0.30 | 2.1~2.9 | 0.18~0.28 | 5.1~6.1 | 0.20 | 0.05 | 0.15 | remainder |
